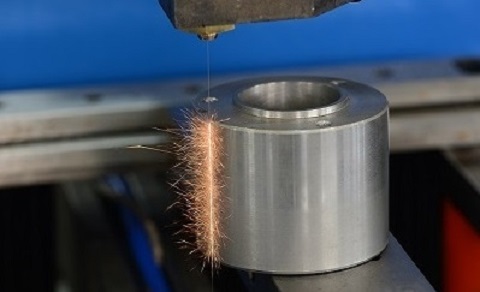

Molybdenum wire EDM TC600G

II. Features: WITH THE BEST CONTROL SYSTEM

  1. Lowest running cost

  2. Reusable molybdenum wire

  3. Multiplicity cutting function: better accuracy, better surface finishing

  4. DXF, AutoCAD can be read. AutoCAD can be used directly, easier to operate

  5. Surface finishing 1.0-0.8μ

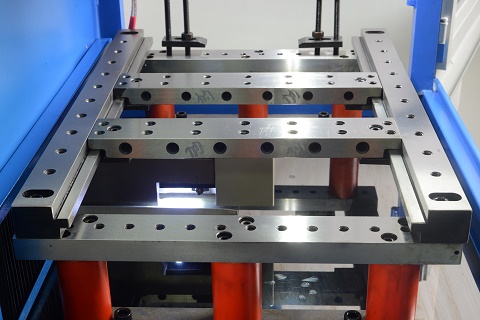

  6. The casting for the main machine bed is equipped with the high rigid HT250, which made by a famous Japanese manufacturer. Integrated structure design, all casting parts are made with the procedure of resin-send and twice heat treatment to improve the max load weight and keep a good precision for long time and avoid the distortion.

  7. Panasonic fromJapan

  8. New designed three layer filter coolant system

  9. Industrial computer: more stable, longer using life

III. CONTROL SYSTEM Windows XP (installed with Auto cut )

1. The controller equipped the Auto cut Intelligent software, which integrates the program and control and based on Windows XP. This new designed Auto cut software is the unique software for WEDM running on the condition of windows XP.

   (1)Coordinate system: Absolute coordinate, incremental coordinate (relative coordinate)

   (2) Functions of coordinate transforming, zooming in and zooming out, rotating and tracking display in real time

   (3)Functions of interpolation of straight line and circular arc

   (4)Function of taper processing: As above

   (5)Function of processing different top and bottom abnormities parts

   (6)Auto-handle for short circuit and wire-break

   (7)Functions of memorizing: unexpected power off, it can continue the processing automatically; auto-stop after processing

   (8)Functions of auto edge-touching position and auto center finding

   (9)Function of auto-adding transitional arc (Arbitrary angle)

   (10) Functions of menu technology and auto-programming ward

   (11)Functions of menu technology and auto-programming

   (12)AUTOCAD can be used to program directly in the software.

 2. Using the PCI slot controller card, LCD Monitor and the High-tech Industrial computer. That greatly enhances the stability of control and greatly reduces the computer the failure rate.

 3. Embedded Control system can be connected with many design software smoothly.

 4. Variety of pulse power can be chosen, which is suited for a number of processing conditions to improve the cutting ability of the high precision parts.

 5. Parameters Automatically created according to the work piece

6. CNC system configuration and technical performances

 (1) CNC Hardware configuration:
         (A) Industrial Computer:P4 or above
         (B)EMS memory:4GSSG
         (C)Fixed Disk:160G
         (D)USB and Internet
         (E) 15″liquid crystal display (LCD)
         (F)  Keyboard and mouse

(2)CNC software and operation platform:
         (A) CNC Auto-program and control function
         (B) operation platform: Windows XP

(3)CNC technical function:
         (A) 4 axis processing
         (B)Function of processing different top and bottom abnormities parts

(4)Running environment
         (A) Temperature: 5-40 degree
         (B) Relative humidity：40%～80%.
